Twisted Strip (solid)

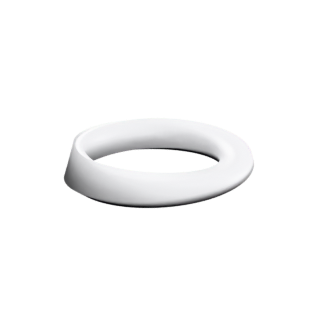

Twisted Strip (solid) is a topological surface, given by a parametrisation, immersed.

Open Twisted Strip (solid) in the interactive viewer →

aperiodic def-parametric immersed implemented topological

Formula

x(u, v)

\left(1 + v \cos\left(\frac{u}{2}\right)\right) \cos\left(u\right)

y(u, v)

\left(1 + v \cos\left(\frac{u}{2}\right)\right) \sin\left(u\right)

z(u, v)

v \sin\left(\frac{u}{2}\right)

Properties

Family: topological
Given by: a parametrisation
Curvature: no condition imposed
Periodicity: not periodic
Ends: 0
Embedding: immersed
Fidelity: exact
Exactness: elementary

Definition

the ruled Mobius band (1 half-twist, radius 1, half-width 0.4 -- the ruled operator's defaults). The record's other construction is the solid strip with rectangular cross-section; this chart is the band's mid-surface. The u seam closes with v reversed (the half-twist)
