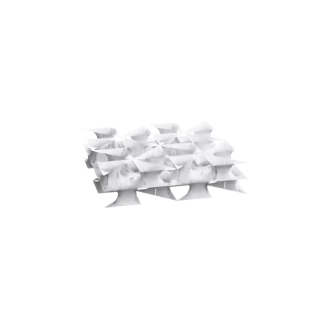

Schoen R-II (genus 9)
Schoen R-II (genus 9) is a triply periodic minimal surface, given by a Weierstrass representation, immersed, with a crystallographic space group.
Open Schoen R-II (genus 9) in the interactive viewer →
def-weierstrass immersed implemented minimal minimal-periodic tradition-crystallographic triply-periodic
Properties
- Family
- minimal-periodic
- Given by
- a Weierstrass representation
- Curvature
- zero mean curvature
- Periodicity
- triply periodic
- Ends
- 0
- Embedding
- immersed
- Orientable
- yes
- Symmetry kind
- crystallographic space group
- Fidelity
- exact
- Exactness
- numerical-integral
Definition
Isosceles right triangular prism cell.
