Paper Bag Surface

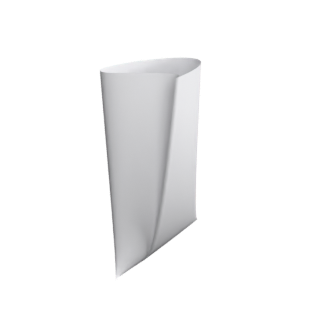

Paper Bag Surface is a surface, given by a parametrisation, immersed.

Open Paper Bag Surface in the interactive viewer →

aperiodic def-parametric immersed implemented misc

Formula

x(u, v)

v \cos\left(u\right)

y(u, v)

\left(v - 1.26 u\right) \sin\left(u\right)

z(u, v)

2.47 v^{2}

Properties

Family: misc
Given by: a parametrisation
Curvature: no condition imposed
Periodicity: not periodic
Ends: 0
Embedding: immersed
Fidelity: exact
Exactness: elementary

Definition

the classic constants a = 2.47 (height) and b = -1.26 (crimp) and depth 2 fixed to the operator defaults; the u = 0 and u = 2*pi boundary curves coincide, so u wraps
