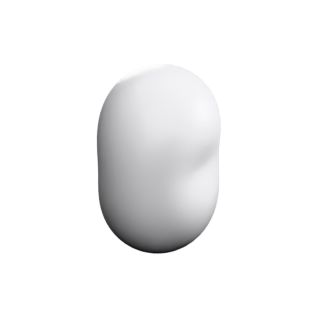

Fresnel Elasticity Surface

Fresnel Elasticity Surface is a surface, given by a parametrisation, immersed.

aperiodic def-parametric immersed implemented misc

Formula

x(u, v)

\sqrt{\sin\left(u\right)^{2} \cos\left(v\right)^{2} + 2.25 \sin\left(u\right)^{2} \sin\left(v\right)^{2} + 4 \cos\left(u\right)^{2}} \sin\left(u\right) \cos\left(v\right)

y(u, v)

\sqrt{\sin\left(u\right)^{2} \cos\left(v\right)^{2} + 2.25 \sin\left(u\right)^{2} \sin\left(v\right)^{2} + 4 \cos\left(u\right)^{2}} \sin\left(u\right) \sin\left(v\right)

z(u, v)

\sqrt{\sin\left(u\right)^{2} \cos\left(v\right)^{2} + 2.25 \sin\left(u\right)^{2} \sin\left(v\right)^{2} + 4 \cos\left(u\right)^{2}} \cos\left(u\right)

the radial quartic r = sqrt(a^2 l^2 + b^2 m^2 + c^2 n^2) over unit directions, with semi-axes (1, 1.5, 2) fixed to the operator defaults

Chart reproduced numerically against the shipped implementation: fwd max 0.28 of tol, 0.0% of oracle beyond tol (tol floor 2.5 x 0.07336).

D. von Seggern, "CRC Standard Curves and Surfaces" (1993), p. 304 -- Fresnel's elasticity surface.
