Etruscan Venus

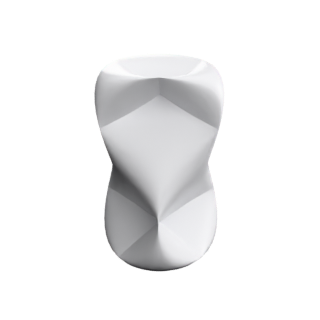

Etruscan Venus is a topological surface, given by a parametrisation, immersed.

Open Etruscan Venus in the interactive viewer →

aperiodic closed def-parametric immersed implemented topological tradition-sculptural

Formula

x(u, v)

\cos\left(v\right) \cos\left(2 u\right) + \sin\left(v\right) \cos\left(u\right)

y(u, v)

\cos\left(v\right) \sin\left(2 u\right) - \sin\left(v\right) \sin\left(u\right)

z(u, v)

2 \cos\left(v\right)

Properties

Family: topological
Given by: a parametrisation
Curvature: no condition imposed
Periodicity: not periodic
Ends: 0
Embedding: immersed
Fidelity: exact
Exactness: elementary

Definition

Francis's ovalesque sweep F(1, 0): rho = 1, so the plane quartic is the unit circle and the surface is the pure sweep of that circle by the altitudinal and basal axes. Waist r1 = 1 and height r2 = 2 at the operator's defaults
