CLP with Handle (exact fundamental piece, genus 4)

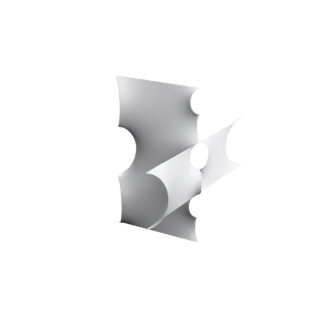

CLP with Handle (exact fundamental piece, genus 4) is a triply periodic minimal surface, given by a Weierstrass representation, genus 4 per unit cell, immersed, with a crystallographic space group.
Open CLP with Handle (exact fundamental piece, genus 4) in the interactive viewer →
def-weierstrass immersed implemented minimal minimal-periodic tradition-crystallographic triply-periodic
Properties
- Family
- minimal-periodic
- Given by
- a Weierstrass representation
- Curvature
- zero mean curvature
- Periodicity
- triply periodic
- Genus per cell
- 4
- Ends
- 0
- Embedding
- immersed
- Symmetry kind
- crystallographic space group
- Fidelity
- exact
- Exactness
- numerical-integral
Definition
No (g, dh) pair is stored: the Gauss map is a product of powers of Jacobi theta functions on the hexagonal/square torus, continued along an unwrapped branch (math_art/minsurf/hexagonal.py); theta functions are outside the exact expression language. The shipped implementation is authoritative; an unverified transcription would silently define a different surface.
Sources
Derived from the Math Art generator registries and cross-referenced to the literature; not transcribed from any gallery's compilation.
